Multi - Function Intelligent Gluing Positioning Machine
Features:
1, This machine adopts an intelligent production line with automatic flying paper feeding, glue feeding, automatic carton or gray board feeding and manipulator grasping and positioning.
2, The glue in the rubber box of this machine can control the 24-hour preheating function.

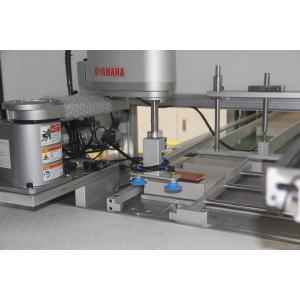

3, The machine uses two 5-megapixel high-definition cameras image system and Yamaha manipulator to locate the box (accuracy ＜0.1mm
4, The whole machine adopts PLC control, high-definition camera positioning system, touch human-machine interface, and manipulator grasp positioning.
5, Computer Control, Automatic Stop and Fault Display
6, Automatic Control System of Glue Viscosity(Selection)
7, You can choose one or two cartons to connect the part of the forming machine to produce cartons.(Selection)
8, It is optional to connect a four side folding machine to form an automatic case maker machine behind the conveyor belt.(Selection)
Other Product Recommend
Jelly Glue / Hot Glue For Book Cover Machine
Product Application
Work Shop Image
Technical Parameter
| Model | WM-SD630B |
| Widest(W) | 630mm |
| Narrowest(W) | 95mm |
| Longest(L) | 820mm |
| Shortest(L) | 120mm |
| Longest(L) | 450mm |
| Shortest(L) | 100mm |
| Widest(W) | 400mm |
| Narrowest(W) | 80mm |
| Highest(H) | 120mm |
| Shortest(H) | 15mm |
| Thickness of Paperboard(T) | 1.0mm-3.0mm |
| Thickness of Paper(g/㎡) | 80g/㎡-300g/㎡ |
| Speed | ≤32pcs/min |
| Manipulator | 400 |
| Conveying | Box |
| Air pressure | 0.6-0.8MPa |
| Voltage | 380V/50Hz |
| Power | 10Kw |
| Weight | 2200Kg |
| Machine Size | L6500*W4300*H2100mm |
Our Services
1. Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.
2. After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
3. Warranty
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage. We can go to your country to debug machine when you have questions can not resolve, but you must pay 100usd/day to our engineer.
